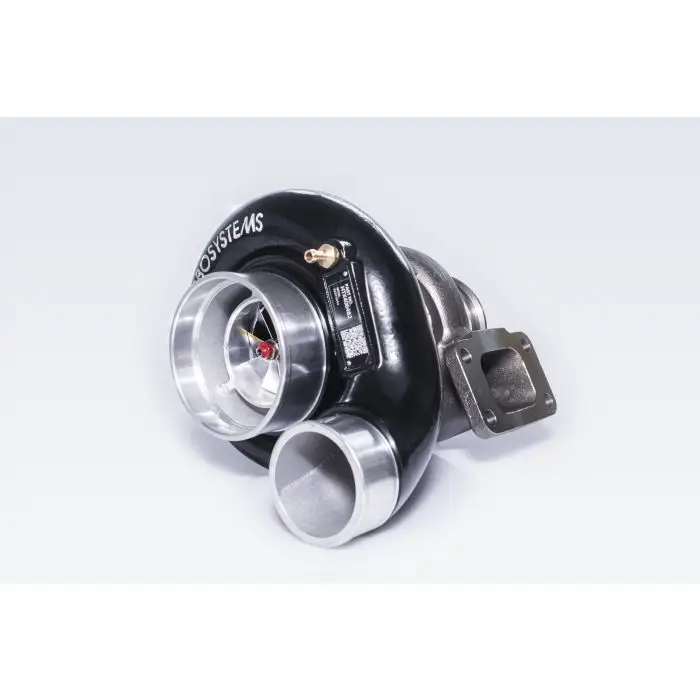

Turbocharger TurboSystem HTX4064B2 air outlet 90 degrees
Power range: 500-750 HP
Compressor side:
- Compressor wheel:in-house made, reinforced 64/79mm 10+0 blades machined from the solid aluminium;
- Intake:101mm (4″);
- Air outlet:63mm (2.5″);
Core:
- Bearings: dual ceramic ball bearings;
- Cooling: water cooling with 2 x M14x1.5 ports;
- Lubrication: AN4 oil inlet with integrated oil restrictor;
Turbine side:
- Housing:single scroll, 14cm2 / AR: 0.82;
- Turbine wheel:custom design 76/64mm 10 blades
- Flange: T3 single scroll;
- Exhaust connection:3″ V-band clamp;
Included Vband clamp and Oil drain flange
